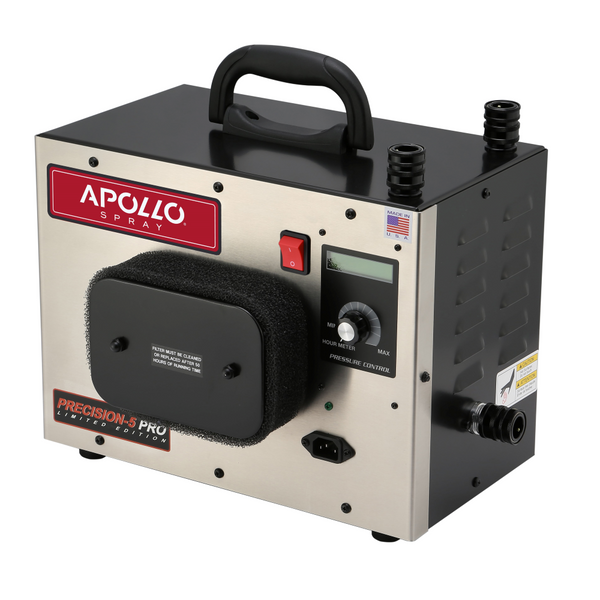

Apollo PRECISION-5 PRO Limited Edition+ (LE+) HVLP Turbine Spray System - 1 Quart (Qt.) Aluminum Bottom Feed Cup & 3M Series 2.0 PPS Options
Apollo PRECISION-5 PRO Limited Edition+ (LE+) HVLP Turbine Spray System - 1 Quart (Qt.) Aluminum Bottom Feed Cup & 3M Series 2.0 PPS Options
$2,399.00
The enhanced power and exclusive features of the PRECISION-5 PRO LE+ put you in control of the most advanced TrueHVLP™ system for industries and applications demanding precision HVLP technology for the perfect finish. This new 5 stage system generates 22% more power to spray higher viscosity materials faster and the PRECISION-5 PRO LE+ can be used for the widest range of coatings, solvent or water base, clear or pigmented as well as specialized materials: faux paints, gelcoat, latex (emulsion) and multi-spec.
You will experience 80%-90% TE (Transfer Efficiency) and a cleaner work environment with Apollo Sprayers Turbospray HVLP spray systems; the easiest to use HVLP spray finishing systems available. Apollo’s gentle warm dry turbo air ensures no moisture contamination in your finish or your work.
With Apollo Sprayers turbo powered HVLP, more power and more atomizing pressure means more performance and more value for the finisher. Apollo Sprayers TrueHVLP™ PRECISION-5 PRO LE+ provides the ultimate atomizing pressure to ensure the perfect finish every time! If you spray higher viscosity or more difficult to atomize finish products you will be amazed how the PRECISION-5 PRO LE+ can atomize those finishes, all with the least amount of overspray. Apollo Sprayers higher pressure ensures your ability to spray the coatings of your choice with less compromise.
The Apollo system is great to spray a wide range of low to high viscosity finishes in a variety of applications such as wood projects, cars, boats, planes, fencing and more with the least amount of overspray. The PRECISION-5 PRO LE+ achieves excellent results when spraying all solvent-based materials: stains, lacquers, enamels, polyurethanes, catalyzed finishes, conversion varnishes, and linear polyurethanes as well as HVLP compatible waterborne coatings and more. The PRECISION-5 PRO LE+ produces a professional high-quality finish that suits professional and home-based operations.
The PRECISION-5 PRO LE+ Turbo Paint Spray (Turbine) system is available with the Award-Winning AtomiZer® 7700 as well as a superb range of performance proven Apollo designed HVLP spray guns. In addition, the package is available with either a 1 Qt. Aluminum Cup or the 3M Series 2.0 PPS H/O disposable liner & lid cup system which allows for easy cleanup, short term coating storage and the ability to spray at any angle even upside down without losing fluid flow!
For further nozzle or spray gun customization, please contact us!
Description
Specifications:
- 5 stage turbine
- 10 psi (0.70 Bar) sealed turbine pressure
- 130 cfm (3.68 cmm)
- HVLP technology only - Single HVLP turbine spray gun operation
- Dual washable square turbine filters (pre-filter and main filter) – replace less frequently (dual filtration)
- 110VAC – 60HZ (All 110 volt units are tested and certified by ETL)
- 1508 watts
- Pressure Control System (PCS™) - variable output from 0.1 psi – 10.0 psi
- Dimensions: 15" (L) X 8.5" (W) X 12" (H) - (38.1cm (L) X 21.6cm (W) X 30.48cm (H))
- Weight: 32 lbs/14.5 kg
Features & Benefits
-
Precision
Pressure Control System (PCS™) controls motor speed, voltage and amperage adjusting automatically for altitude and barometric pressure assuring precise atomizing pressure anywhere. -
Unparalleled Power & Efficiency
Delivers 10.0 PSI sealed pressure for optimum atomization. Documented 80+% transfer efficiency and 38% savings on coatings when compared with compressed air systems. -

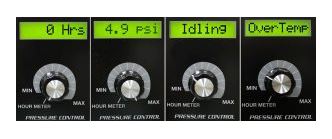

LCD Message Center
Hour Meter, Accurate Pressure to 1/10th PSI, Idling, Filter and Temperature Warning. -
PowerPause™
Provide a 45 second auto-idle mode to preserve motor life and long-term reliability while permitting the highest available flow pressure. (U.S. Patent 9,599,117 B2). -
QuadraClean™
Dual automotive filters (pre-filter & main filter) provide advanced air filtration to keep the system running cooler and prolong motor life. -
32′ (9.75 meter) Apollo-Flex™ Hose
Quick lightweight alloy couplers on both ends and our exclusive Ultra-Flex™ whip hose at the spray gun end. -
Handi-Hold™ Spray Gun Docking Station with Ready-Loc™
Store, hold or transport your spray gun, or other accessories, safely. -
7700 Atomizer®Spray Gun Choices
Apollo offers many spray guns that are compatible with the POWER-5 VS™. Choose the gravity or bottom-feed cup option that best fits your needs. Turbine is for use with an HVLP turbine spray gun only (single spray gun capability). -
Apollo's exclusive Tapered Fan Technology (TFT™) Motors
Provide for more pressure and performance for a faster, finer finish. -
Comfortable Carry Handle
Make transportation easy and convenient. -
Vibration Pads
Located on the feet of the turbine to help stabilize the unit and make things quieter. -
All Steel Housing With 26 Air Vents
Keeps your motor running cooler and longer. -
5-Year Limited Warranty - Industry Leading!
The 2+ 3 warranty includes 2 years parts and labor to protect your investment. Registering your system adds the 3 years of bonus coverage.
Notes: *This unit is equipped with an internal air relief valve to accommodate a non-bleed style turbine spray gun. As a result, the actual flow pressure may vary from the sealed pressure quoted.

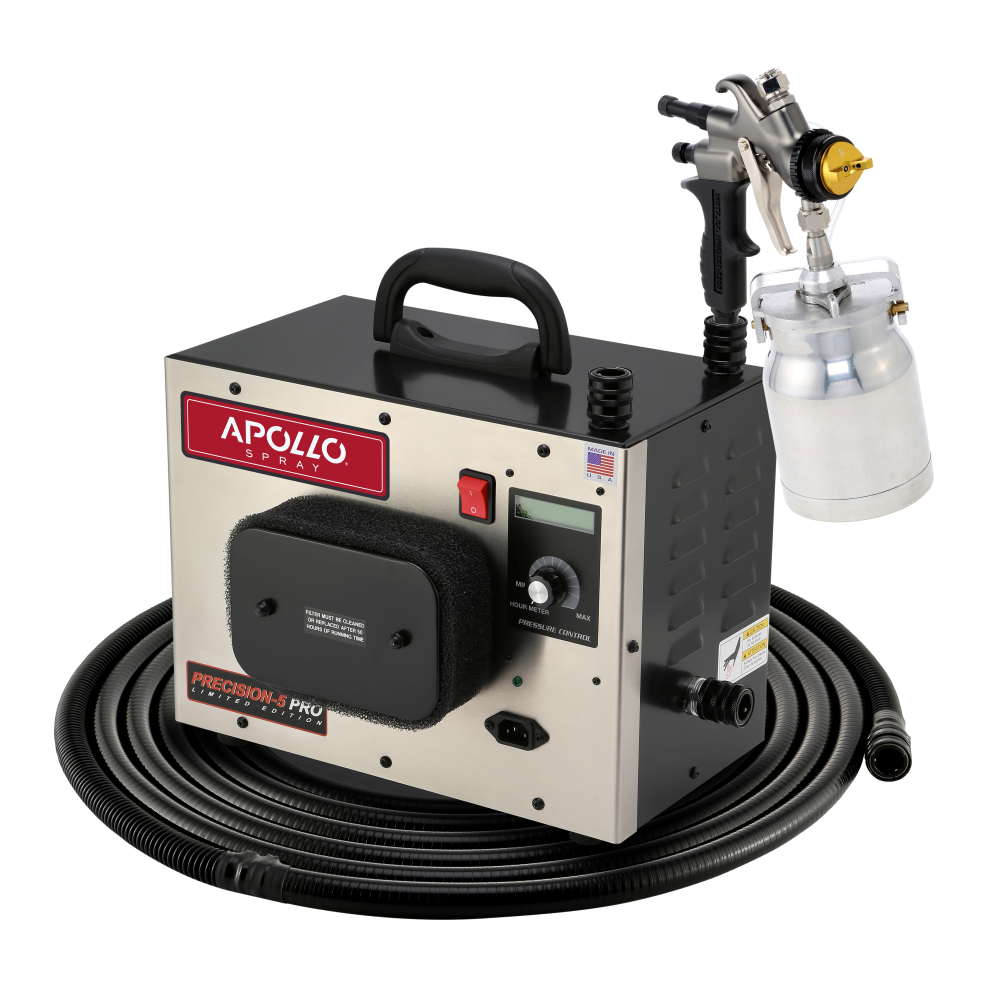

Apollo POWER-5 PRO LE+ Turbine Package Includes:
- Apollo PRECISION-5 PRO LE+ Turbine System (5 stage unit)
- 7700QT AtomiZer® spray gun with 1.0 mm nozzle set and B standard air cap (additional sizes available & sold separately)
- Choice of cup – 1 Qt. Aluminum Cup only or the option to add a 3M PPS 2.0 H/O Pressure Cup Starter Kit in either the 850 ml (28 oz) or 400 ml (13.5 oz) sizes. (3M PPS Kits come with the H/O pressure cup, 10 liners & lids (200 micron lid filter) and two adapters to allow the H/O cup to be used in the bottom or the top feed configurations with the A7700 series Apollo Atomizer® spray gun).
- 32 ft (9.75M) Air-Flex™ air hose (includes 4’ flexible whip hose at the spray gun connection)
- Four additional needle/nozzle sets (1.3 mm, 1.5 mm, 1.8 mm & 2.0 mm)*
- Two additional air caps (B-HS & C-HS)*
- Carrying case for spray gun*
- Cleaning brush & wrench (spanner)*
- Spray gun lube*
- Deluxe cleaning kit*
- Viscosity cup*
- Blow off tool*
- Quick start guide & owner’s manual
*Included Accessories above – a $590 Value
Nozzle Sets (0.5 mm – 2.5 mm) sold separately – click here
Liners & lids for the 3M PPS cup system sold separately – click here
Information:
Apollo Turbine Comparison Chart
Precision-5 PRO LE HVLP Turbine Manual & Parts Sheets
A7700 Spray Gun Instruction Manual
Apollo Turbine Warranty Registration
*(Please note that the repair kit for the 7700 AtomiZer® spray gun is part # A7547P & the same repair kit with a gasket for the 1 Qt aluminum cup is part # A7547-Q. For more detailed information on the spray gun such as parts, setup & maintenance, please review the part sheet).
