Apollo A7700T HVLP Turbine Spray Gun (Less Cup) -The AtomiZer™ Black Edition
Apollo A7700T HVLP Turbine Spray Gun (Less Cup) -The AtomiZer™ Black Edition
$499.00
The Apollo A7700 HVLP Turbine Spray Gun…THE ONE GUN THAT DOES IT ALL™!
Apollo Sprayers International, Inc. celebrates a giant leap forward in TrueHVLP™ technology with the NEW Apollo 7700T, The AtomiZer Black Edition. This unique spray gun delivers enhanced True HVLP performance and flawless results with any make turbine or air compressor, 3HP/20 gallon (75 litre)tank or larger. Seeing is believing with this breakthrough technology. The AtomiZer's excellent design, superb engineering and impeccable finishing results have won it prestigious awards and devoted users all around the world.
Description
Specifications:
- Non-bleed turbine spray gun

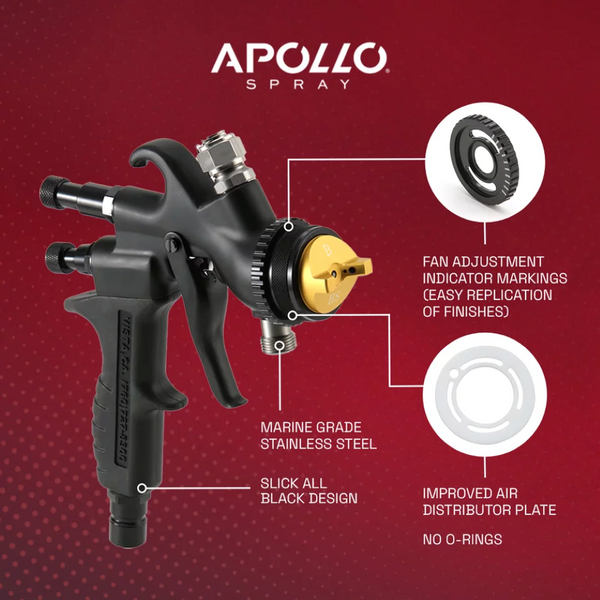

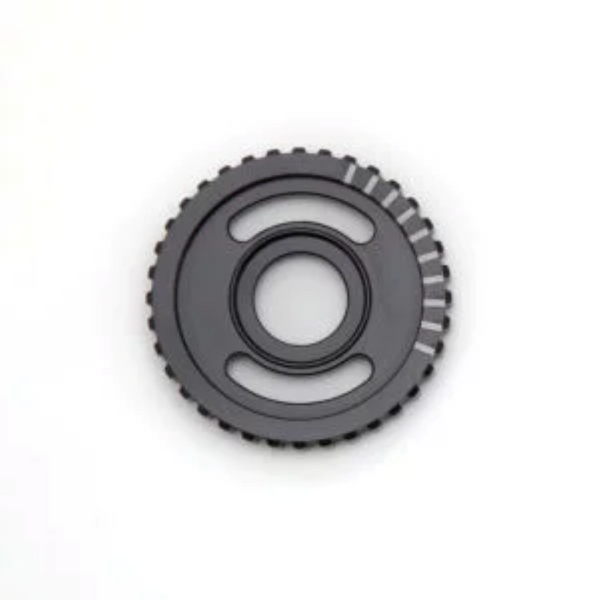

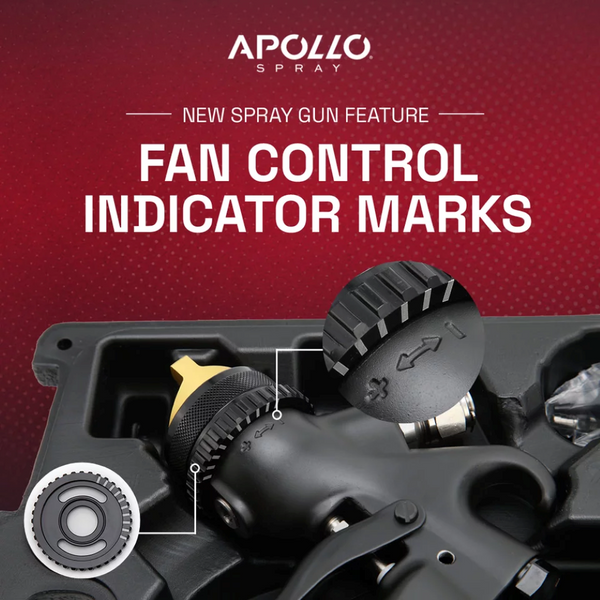

- New and improved precision fan control through the Xpansive™ fan control ring with indicator markings (easy replication of finishes)
- Black edition – scratch resistant spray gun body
- Improved air distributor plate
- Upgraded valve bushing design
- AWFS Visionary Awards Winner
- All stainless steel fluid parts including the needle and nozzle
- Dual material inputs (top and bottom pressure feed)
- Dual air inputs (primary turbine fitting and internal thread for adaptation to compressed air)

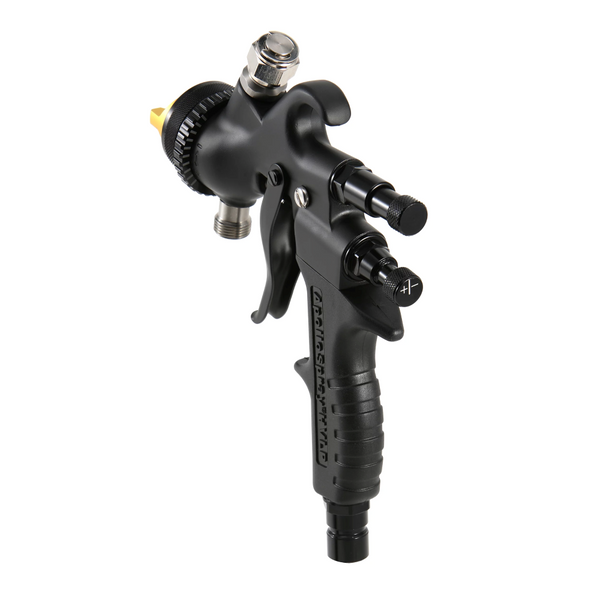

- Material adjustment knob with +/- indicators
- Overspray control knob installed – reduce overspray (turbine only)
- Durable, lightweight and balanced gun body design in plated matte bronze is precision manufactured from aircraft-grade aluminum
- 3-turn, color-coded Air Cap design makes changing a complete range of nozzle and needle sizes quick and easy
- 5 STANDARD CAPS: Black CC (0.5mm), Green A (0.8mm), Gold B (1.0-1.5mm), Blue C (1.8-2.0mm), Silver D (2.5mm)
- 3 HIGH SOLIDS CAPS: Gold B-HS (0.8mm), Blue C-HS (1.8-2.0mm), Silver D-HS (2.5mm)
- 8 Nozzle/Needle sizes available: 0.5mm, 0.8mm, 1.0mm (installed), 1.3mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm
- New technology for atomizing particles—MicroTech™ Atomization Technology
- Professional all aluminum spray head – advanced in balance and lightweight design
- Durability and reliability ensured with internal parts expertly engineered from marine-grade stainless steel and NO “O” rings
- Enjoy low overspray and a flawless finish
- Clean-up is simple
-
2-year parts and labor warranty
- Unique spray gun design allows for multiple cup and remote fluid feed configurations:
- Gravity feed (pressurized) — 3 oz, 8 oz or 20 oz cup sizes
- Pressure feed (bottom feed) — 8 oz or 1 qt cup sizes
- 3M PPS H/O Pressure Cup (pressurized top or bottom feed) - 13.5 oz or 28 oz cup sizes
- Production – 2 quart (2 liter) pot or larger (Ready to use with any pressure pot or cup accessory using a 3/8" (10mm) fluid coupler)
NOTE: Maximum Required Air Pressure and Volume: 23 psi / 7-11 cfm
Apollo A7700T Spray Gun Package Includes:
- A7700 spray gun with choice of nozzle set– (1.0 mm with (B) air cap is the standard nozzle set)
- No pressure cup included
- Spare parts kit
- Sample bottle of genuine Apollo Spray Gun Lube

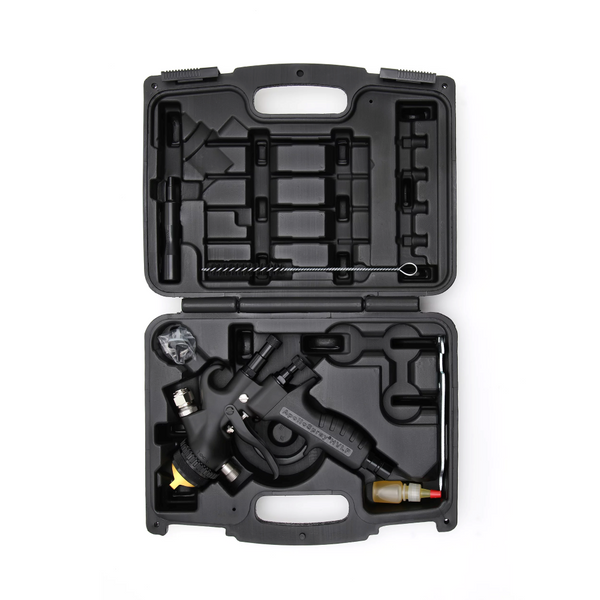

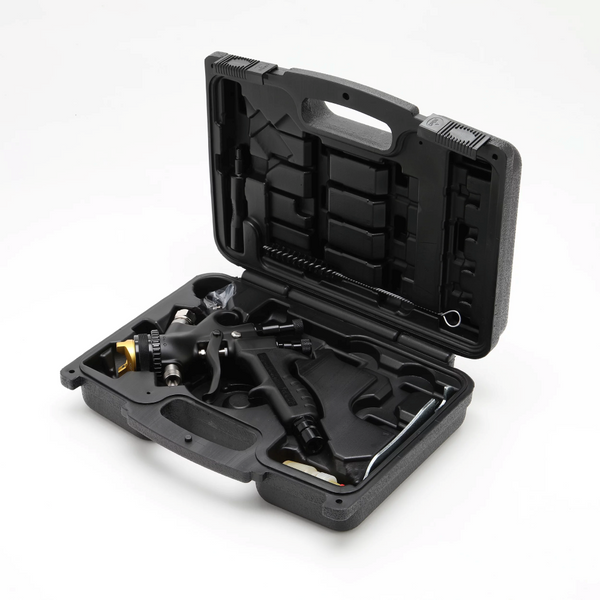

- Deluxe spray gun carrying case
- Cleaning brush & wrench (spanner)
- Bushing insert tool
- Quick start guide & owner’s manual
Nozzle Sets available – (0.5 mm, 0.8 mm, 1.0 mm (installed), 1.3 mm, 1.5 mm, 1.8 mm, 2.0 mm, 2.5 mm) sold separately
Air Cap sizes available - (CC, A, B, B-HS, C, C-HS, D, D-HS (color coded)) sold separately
(0.8 mm nozzle set with (B-HS) air cap & 1.0 mm nozzle set with (B-HS) air cap – Automotive Coatings Setups)
3M PPS cup system sold separately
Information:
Apollo A7700 Atomizer Turbine Spray Gun - Part Sheet
Apollo A7700 Atomizer Turbine Spray Gun - Instruction Manual
Please note, when using the A7700 Series Turbine HVLP non-bleed spray gun with older turbine systems, you must also purchase the A7538A External Air Relief Valve to accommodate a non-bleed style turbine spray gun. In addition, the repair kit for the A7700 AtomiZer® spray gun is part # A7547P. For more detailed information on the spray gun such as parts, setup & maintenance, please review the part sheet.
